| Business Type | Exporter, Supplier |
| Brand Name | Cosmos |
| Country of Origin | India |
| Spindle Speed(RPM) | 8000 |
| Click to view more | |
Product Details
Number of Axis
3 Axis
Spindle Speed (RPM)
5001 - 10000 RPM
Spindle
7.5 kW
Model
CVM 640 / CVM 800 / CVM 1160 / CVM 1370
Table Working Surface Size
min 800 X 450 mm
Table T-Slot Size
min 18 x 4 x 100 mm
Table Maximum Load
400 to 1500 Kg
Distance from Spindle Nose to Table Surface
100 - 600 mm
Rapid Traverse Rate (X/Y/Z Axis)
36 m/ min
Cutting Feed Rate
10 m/ min
ATC Magazine Capacity
24
Positioning Accuracy
0.01 mm
Repeatability Accuracy
0.003 mm
Power Capacity
20 KVA min

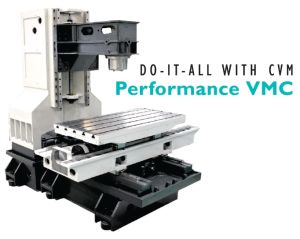

Looking for "Cosmos Vertical Machining Center" ?
